Smart film specifications: White,
Grey and Black

Optical, electrical, physical and environmental data for Smart Electronic Tint™
switchable film. Written for architects, glaziers, interior designers and
electricians.

Default state

Opaque when unpowered

Drive voltage

48–65 V AC

Max panel

1500 × 2700 mm

Warranty

3 yr product
5 yr workmanship
Send your drawingsTalk to Us
How it switchesColoursColour comparisonFull specificationElectrical and installWarrantyFAQ

Clear when powered. Private when not.

Liquid crystals sit between two conductive layers in the film. With no voltage they
scatter light and the film is opaque. With 48–65 V AC applied, they align and the film
turns clear. Power is drawn only while the film is clear.
Powered (ON)

Clear

White film transmits 88% of visible light with 3% haze. It switches from opaque to clear in under 10 ms.
Unpowered (OFF)

Opaque

White film drops to 11% visible light and 98% haze, so light passes but images don't. A power failure leaves the room private, never exposed.

Three colours, each shown clear and opaque

Colour changes both states, not just the opaque one. Grey and Black cut light and heat when clear too, so choose on how bright the room needs to be with the film switched on.
Open & Transparent
Private & Secure

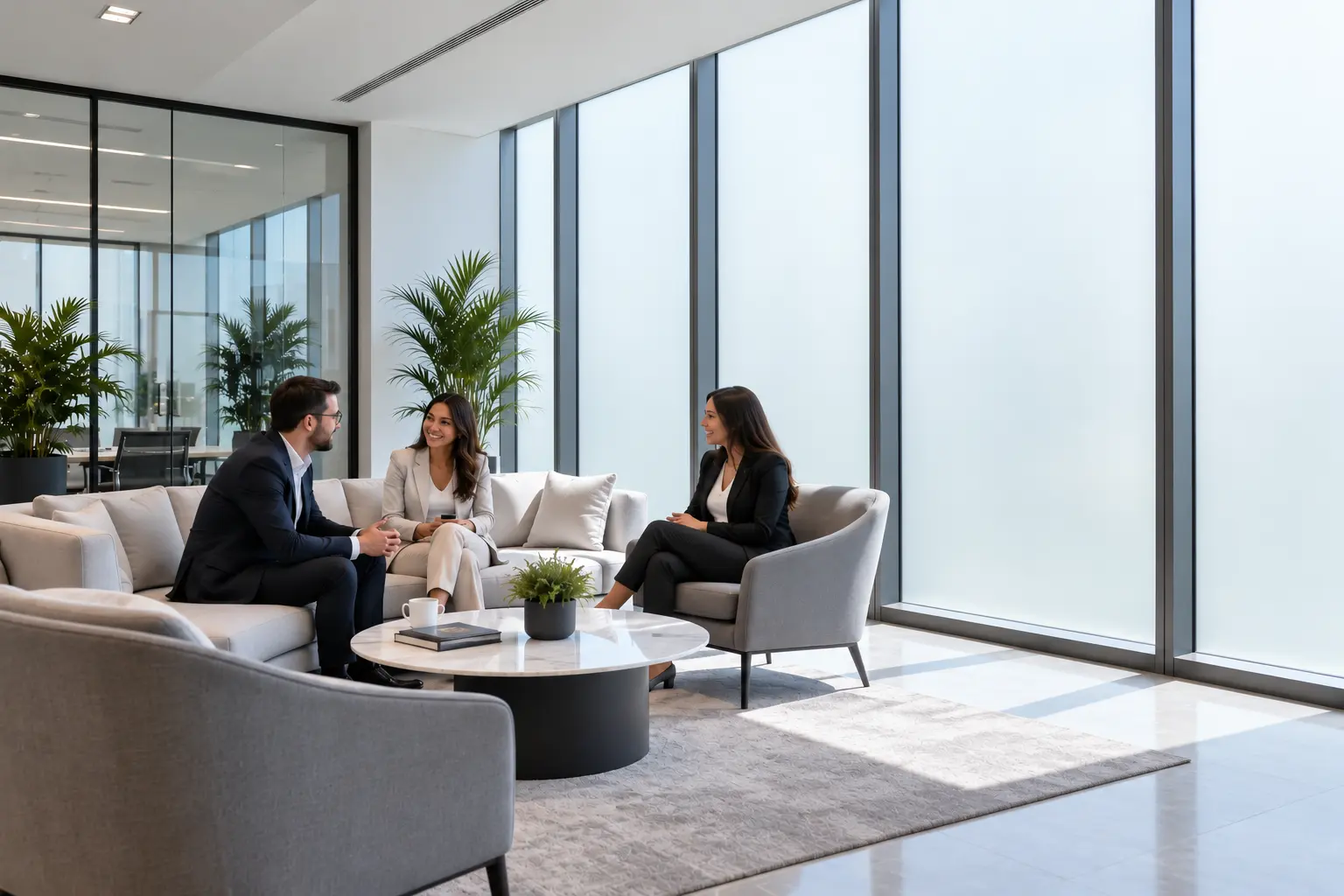

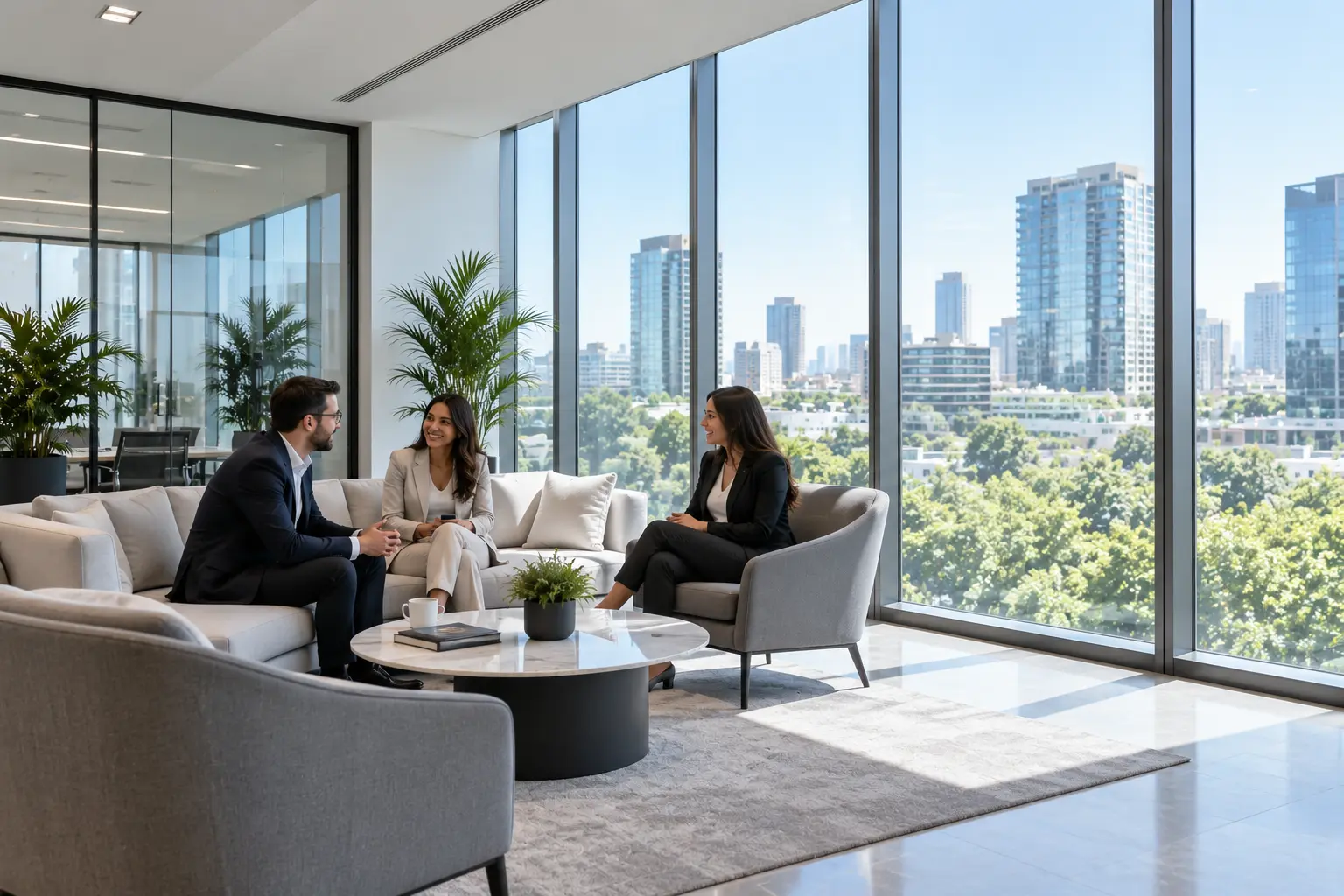

White

Maximum daylight when clear. Frosted white privacy when off. The default choice for partitions, meeting rooms and street-facing windows.
Visible light
88% / 11%
IR blocking
35% / 90%
UV blocking
≥99% / ≥99%
Open & Transparent
Private & Secure

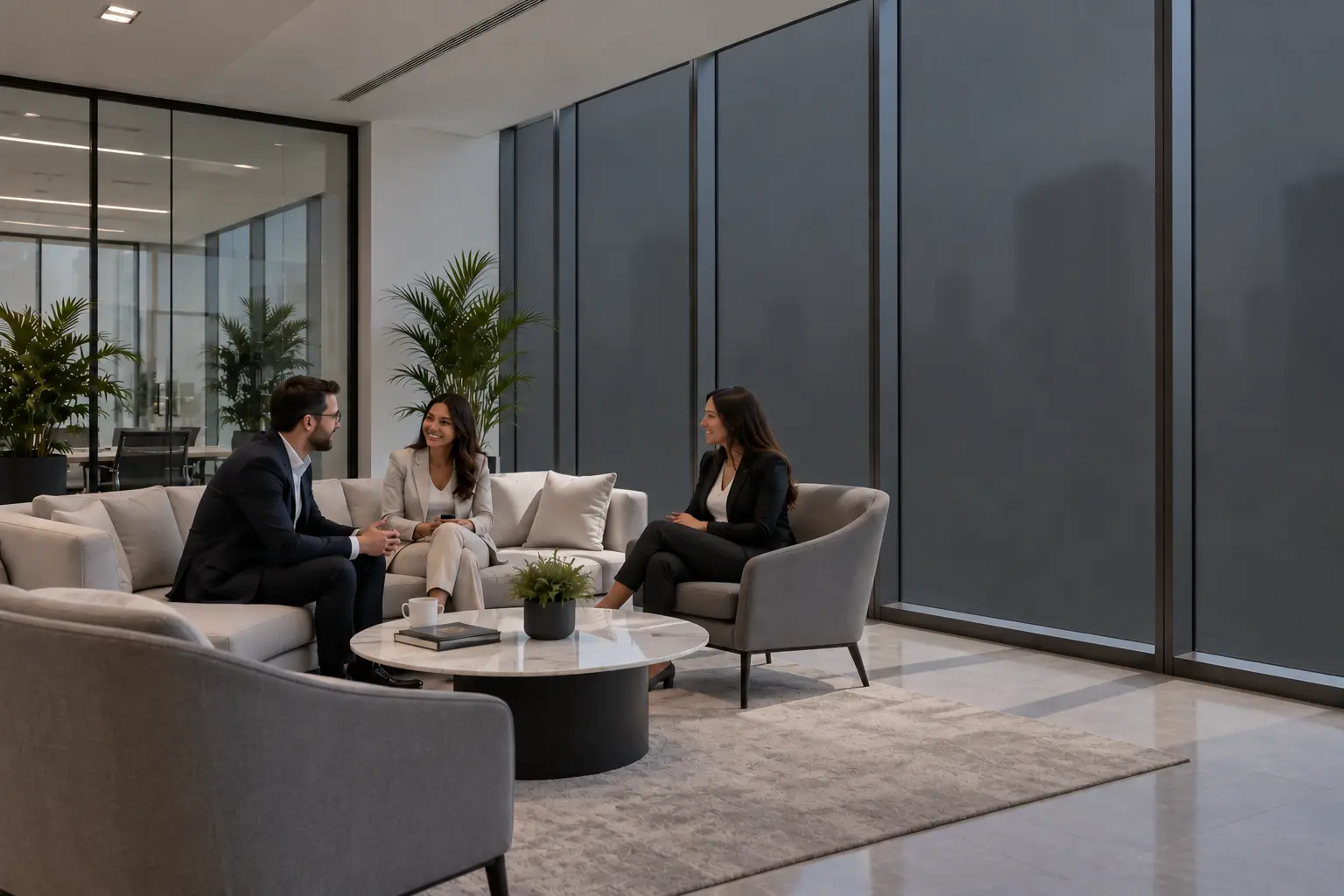

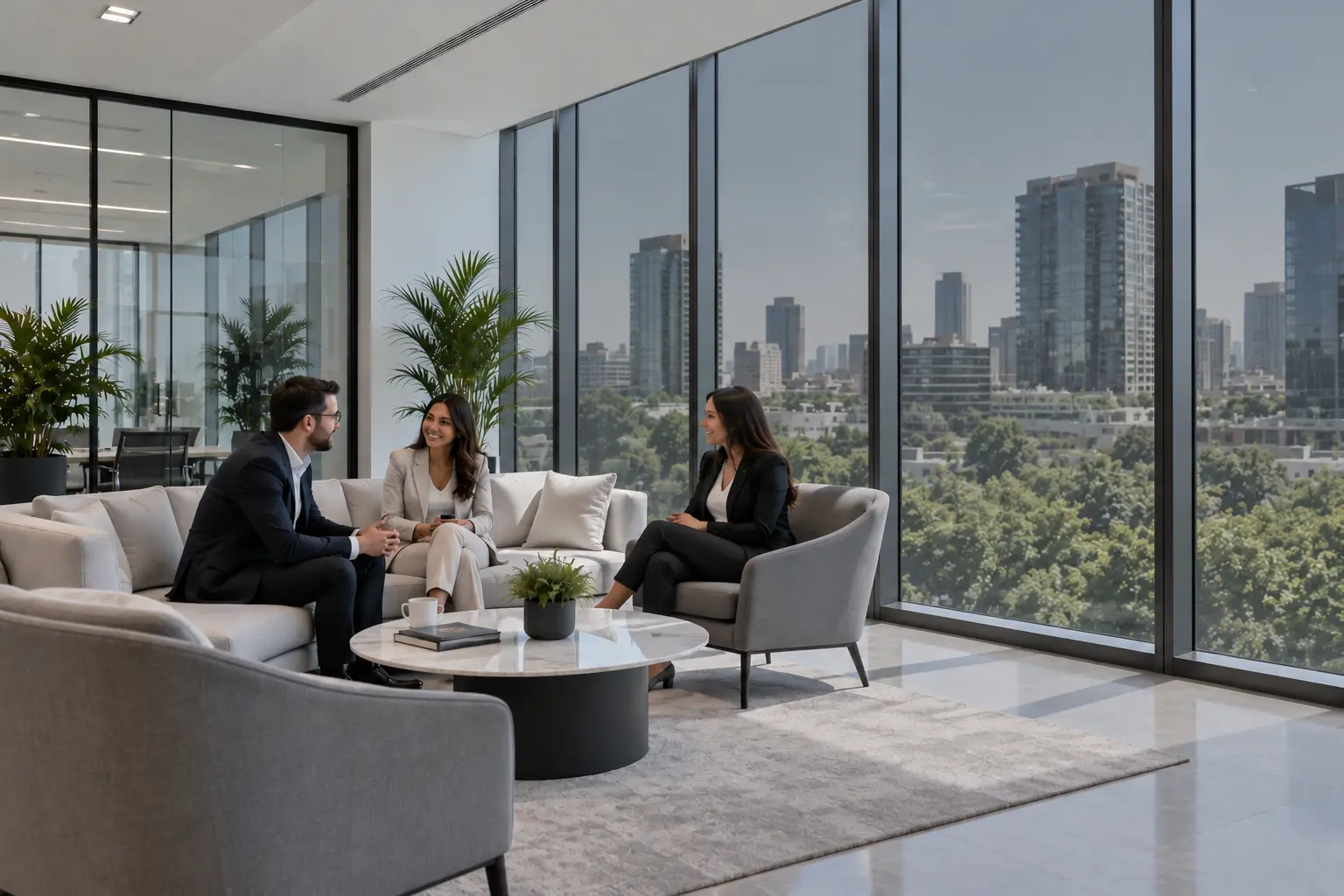

Grey

Tinted even when clear, like a light window tint. Suits glare-prone glass where some light reduction is wanted at all times.
Visible light
48% / 5%
IR blocking
44% / 90%
UV blocking
99% / 100%
Open & Transparent
Private & Secure

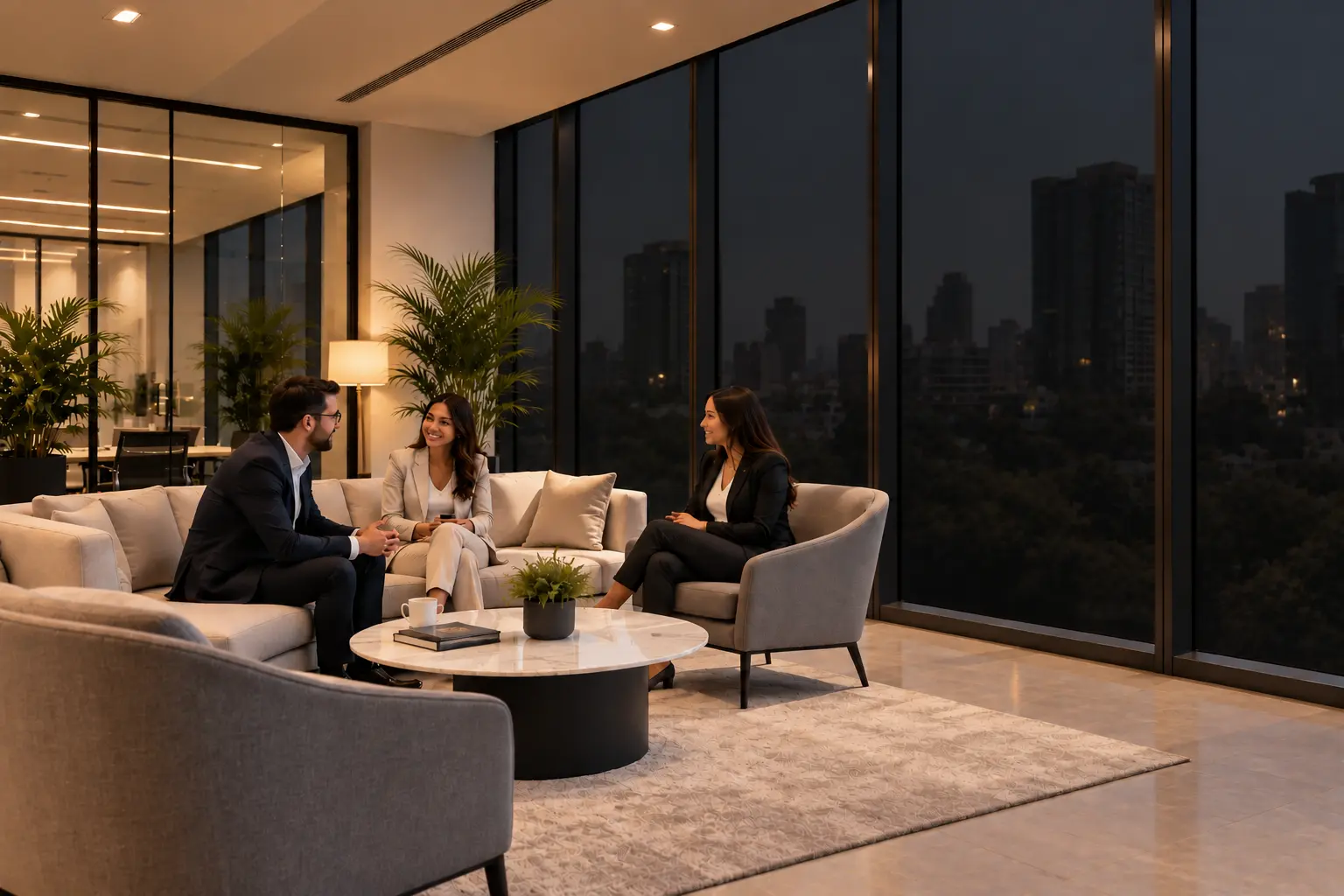

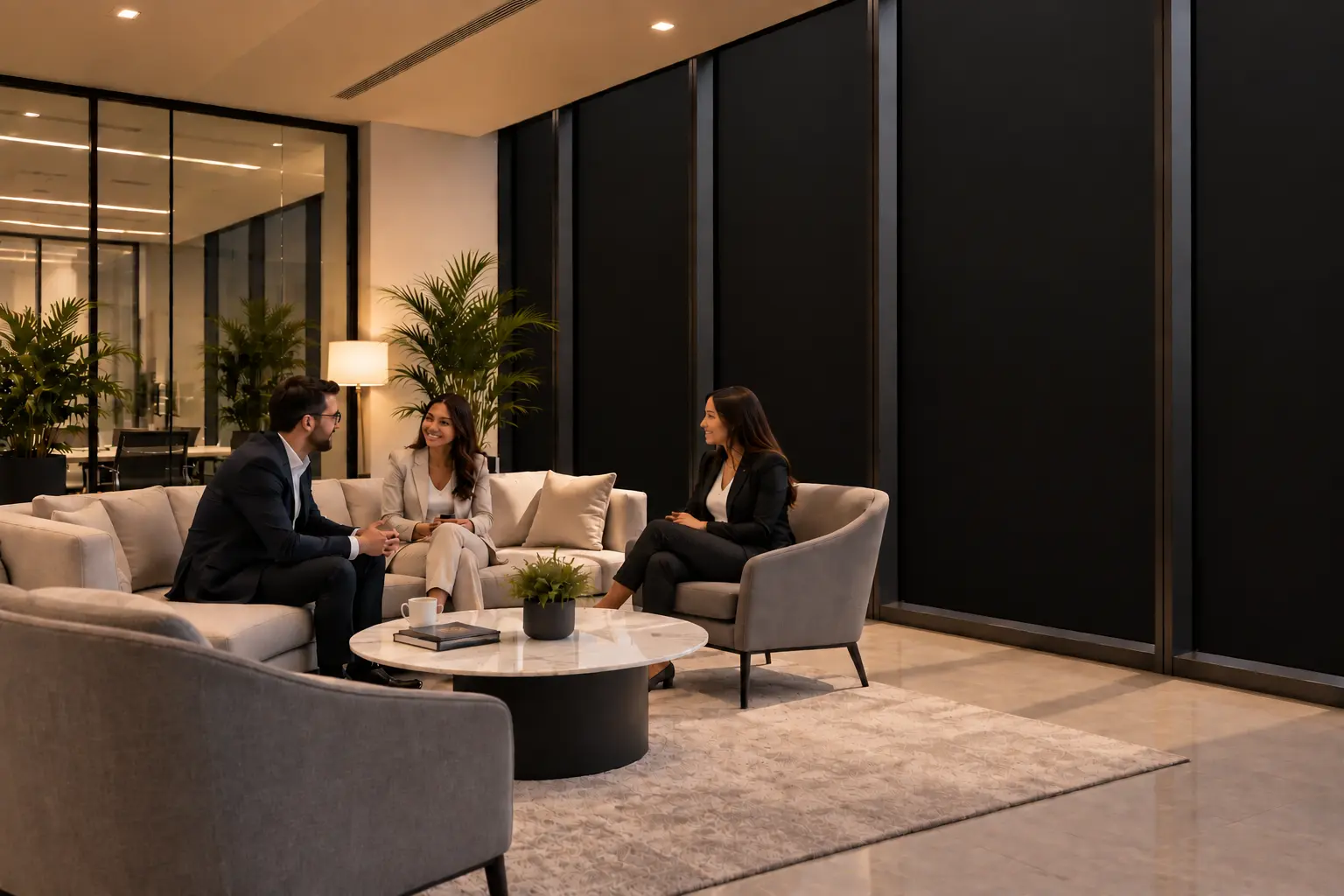

Black

Dark even when clear, close to blackout when off. Suits media rooms, boardrooms with screens, and glass where light control matters more than daylight.
Visible light
10% / 0%
IR blocking
93% / 100%
UV blocking
100% / 100%

Optical performance by colour

White, Grey and Black smart film
‍ON = powered (clear). OFF = unpowered (opaque).
Parameter
White
Grey
Grey
Visible light transmission, ON
88%
48%
10%
Visible light transmission, OFF
11%
5%
0%
IR blocking, ON
35%
44%
93%
IR blocking, OFF
90%
90%
100%
UV blocking, ON
≥99%
99%
100%
UV blocking, OFF
≥99%
100%
100%
Haze, ON / OFF
3% / 98%
Ask us
Ask us
If heat control matters with the film clear, compare IR blocking in the ON row: White 35%, Grey 44%, Black 93%.

Smart Electronic Tint™ film: full
specification

Applied to glass and custom-cut to each panel. Busbars are fitted at the panel edge
and edges are sealed with silicone.
White smart film
Parameter
ON (powered)
OFF (unpowered)
Optical
Visible light transmission
88%
11%
Haze
3%
98%
Viewing angle
≥150°
-
IR blocking
35%
90%
UV blocking
≥99%
≥99%
Electrical
Operating voltage
48–65 V AC
0 V
Frequency
50–60 Hz
-
Current
100 mA/m²
≈ 9.3 mA/ft²
-
Power consumption
<5 W/m²
<0.46 W/ft²
0 W
Switching time, opaque → clear
<10 ms
Switching time, clear → opaque
<200 ms
Physical
Maximum panel size, interior
1500 × 2700 mm
Maximum panel size, exterior
1500 × 2700 mm
Colours
White, Grey, Black
Environmental
Working temperature
−20 °C to 70 °C
−4 °F to 158 °F
Storage temperature
−20 °C to 70 °C
−4 °F to 158 °F
Electrical, size and temperature data is published for White film. Confirm Grey and Black
values for your project before you specify them. Larger openings are covered by splitting
across panels.

Electrical and installation

The film never sees mains voltage. A transformer steps mains down to 48–65 V AC
and feeds each panel through its busbar.
01

Mains supply

Connected by a licensed electrician
02

Transformer

Sized to the total film area; switch or remote control
03

Low-voltage run

48–65 V AC, 50–60 Hz to each panel
04

Busbar and film

Clear when energised, opaque when not

Included in supply and install

  • Manufacture of Smart Electronic Tint™ film, cut to each panel
  • Full busbar installation
  • Full silicone edge work
  • Final finishing and switch test

Scoped separately once the job is confirmed

  • Electrical work, including transformer requirements
  • Remotes and control options
  • Project-specific customisation
Sizing the load: film draws under 5 W/m² when clear, so a 10 m² installation draws under 50
W at the panels. We confirm the transformer specification with your electrician before
install.

What's covered, and for how long

3 years

Product warranty

Covers the Smart Electronic Tint™ film against manufacturing defects.
5 years

Workmanship warranty

Covers our installation, including busbar and silicone work.

Questions specifiers ask about smart film

What happens in a power outage?

The film turns opaque. It's clear only while powered, so the unpowered state is private. A power failure never leaves a room exposed.

Icon - Elements Webflow Library - BRIX Templates

Does it draw power when opaque?

No. Film draws power only when clear, at under 5 W/m².

Icon - Elements Webflow Library - BRIX Templates

Who connects it to mains?

A licensed electrician. The film runs at 48–65 V AC through a transformer. We confirm transformer and control requirements once the job is confirmed and scope that electrical work separately.

Icon - Elements Webflow Library - BRIX Templates

Which colour blocks the most heat?

Black. It blocks 93% of infrared when clear and 100% when opaque. Grey blocks 44% and 90%. White blocks 35% and 90%.

Icon - Elements Webflow Library - BRIX Templates

Can the film dim?

Confirm dimming with us for your project. Standard control is on and off by switch or remote.

Icon - Elements Webflow Library - BRIX Templates

What's the largest panel?

1500 × 2700 mm per panel, interior or exterior. Larger openings are split across panels.

Icon - Elements Webflow Library - BRIX Templates

Can the figures differ on my project?

Yes. The values here are manufacturer test data. Glass type, colour and panel size can shift performance, so we confirm figures against your drawings before you specify.

Icon - Elements Webflow Library - BRIX Templates

Specifying new glazing instead?

Smart glass comes as a sealed insulated glass unit with published SHGC,
dimming and segment control.
See smart glass specifications

Specifying smart film for a project?

Send your drawings or window schedule. We'll confirm panel sizes, colour and the transformer spec for your electrician.
